Performance
98.8%
98.8% represents the True Positives
False Positives is less than 0.7%
True Negative is more than 99.3%
False Negative is less than 1.2%
GUSTO STATISTICS EXPLAINED
98.8% Represents the True Positives

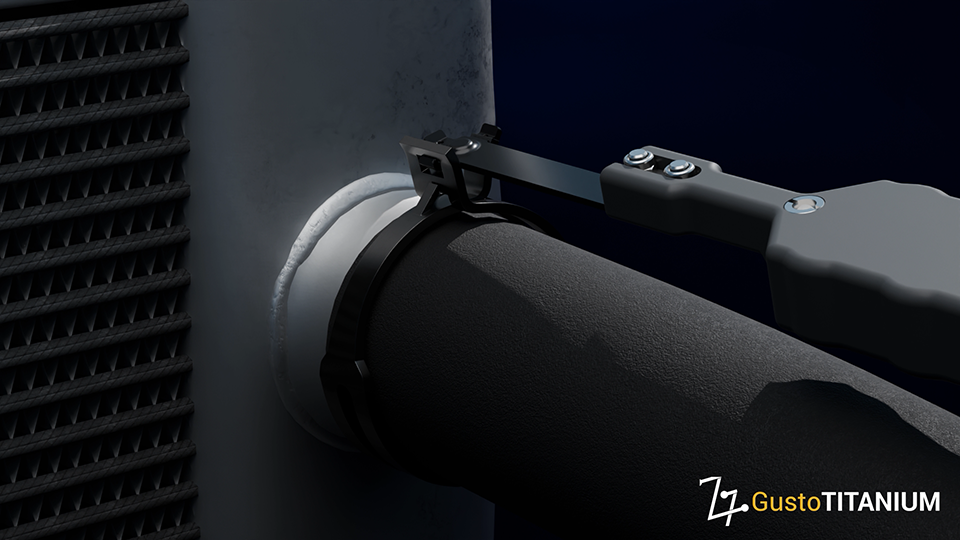

If the Gusto Tool experiences 100 vibrations it will be able to accurately classify 98-99 of these vibrations as “Clips”.
False Positives is less than 0.7%
If the operator dropped the tool or hit it on the engine while accessing the clamp, the Gusto tool will be at a risk of giving one false green led (OK) for every 100 vibrations that was passed to the tool.
True Negatives is more than 99.3%
The gusto tool will be able to accurately classify a vibration that wasn’t from a clamp being released as a “Hit” once out of every 100 vibrations passed to the tools from hits 99 of these will be classified correctly.
False Negative is less than 1.2%
If 100 clamps are released using the Gusto tool approximately 98/99 of these clamps will be correctly classified as a “clip” with the risk of missing one or two clamps per every 100.
Features

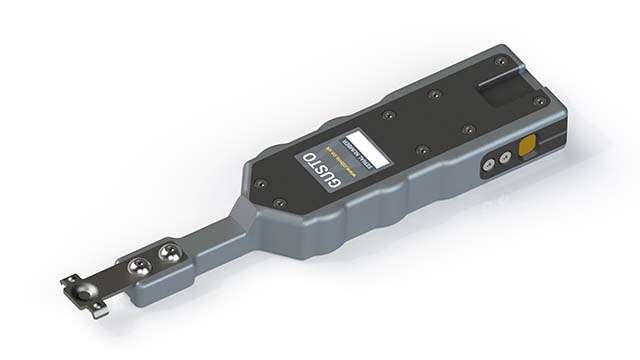

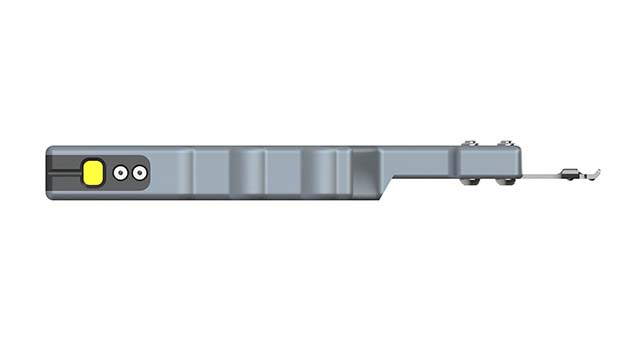

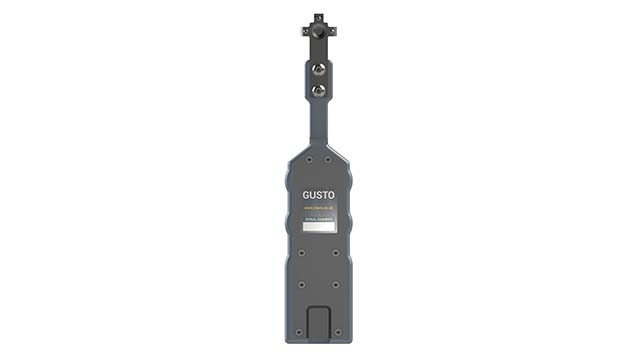

GUSTO TITANIUM TOOL FEATURES
- 6-Axis Inertial Measurement Unit (IMU) containing a 3-axis gyroscope & 3-axis accelerometer.
- Aluminum Housing.
- Tri-colour LED for instant operator feedback.
- Interchangeable tips.
- One tool/code for all clamp sizes.
- Built-in diagnostics menu.
- Ability to detect and reject accidental false triggers.

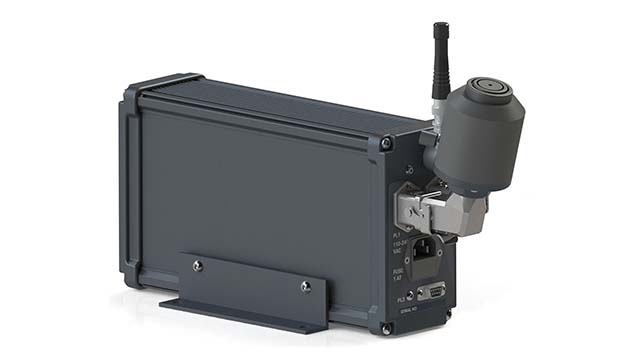

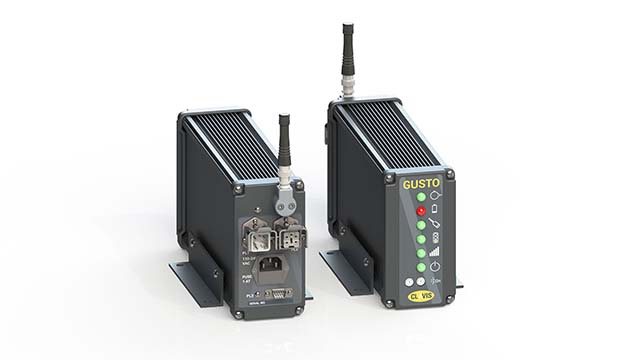

GUSTO TITANIUM RECEIVER

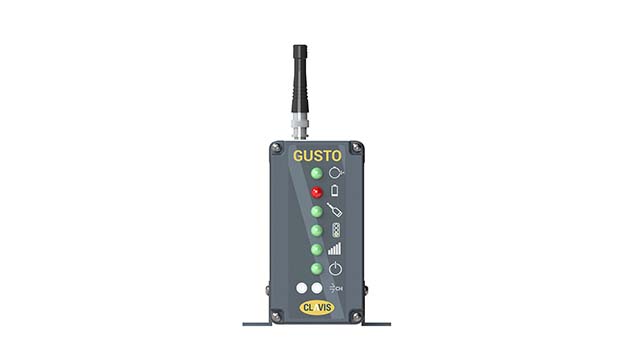

- ‘Tool-present’ LED which indicates a secure radio link.
- An error-proofing output for connection to the plant quality computer system. This provides traceability of each vehicle set by the Gusto.
- Communication protocols; 868 MHz, 915 MHz, 2.4 - 5 GHz
- Output for external buzzer - provides an acoustic (40-90 dB) feedback when a clamp is released.

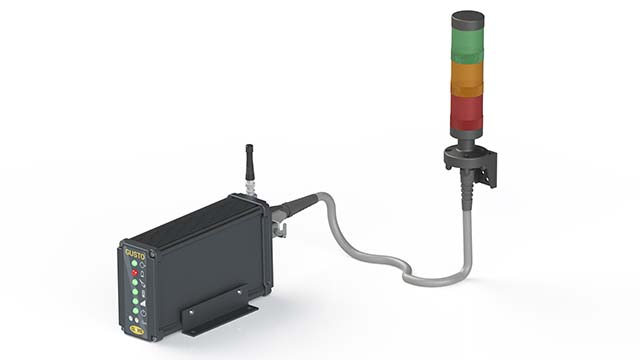

- Output for a light stack to indicate tool present, low battery and clamp released.
- Output Ethernet TCP/IP, RS232, PROFINET
GUSTO TITANIUM BATTERY CHARGER
- Fast charge capability - charging the tool to 80% in less than 1 hour.
- Separate LEDs indicating power, charging, and fully charged.
- Charger and receiver works on 100V to 220V AC.
